AUSTRALIA PURGE BUNGS

Purge Bungs

Forming gas double plugs


14 plugs in a durable plastic case

7 different sizes of plugs, colour coded. The colour is a simple way of representing the diameter. Inner diameter ranges from 10 mm to 110 mm. Made of silicone, shore hardness 35. Heat resistant up to 300° C max.


Purge kit

Included in delivery:

  • 14 plugs (7 different coloured sizes)
  • Durable transparent plastic case with lid (See the complete set at a glance)
  • 6m forming gas hose, 6×1, colourless PE with shut-off valve


Accessories also available for purchase:

  • 7 gas swirl nozzles for gas inlet plugs, pluggable


Forming gas caps

  • The world's first forming gas cap from a 3D printer
  • Available from DA 6 to DA 323 mm
  • In some industries, forming gas bodies are not allowed into the high-purity pipes.
  • The forming gas cap is placed over the outside of the pipe end and tightened in a union nut using a coarse thread. Inside there are two donut-like TPU air cushions, which are clamped against the outside of the tube when tightened
  • There is a hose connection in the middle of the body of the screw connection
  • This can be a clamping wedge ring screw connection (Swagelok) or a plug-in coupling (Festo-SMC).
  • Patent submitted
  • Pipe and tube compatible

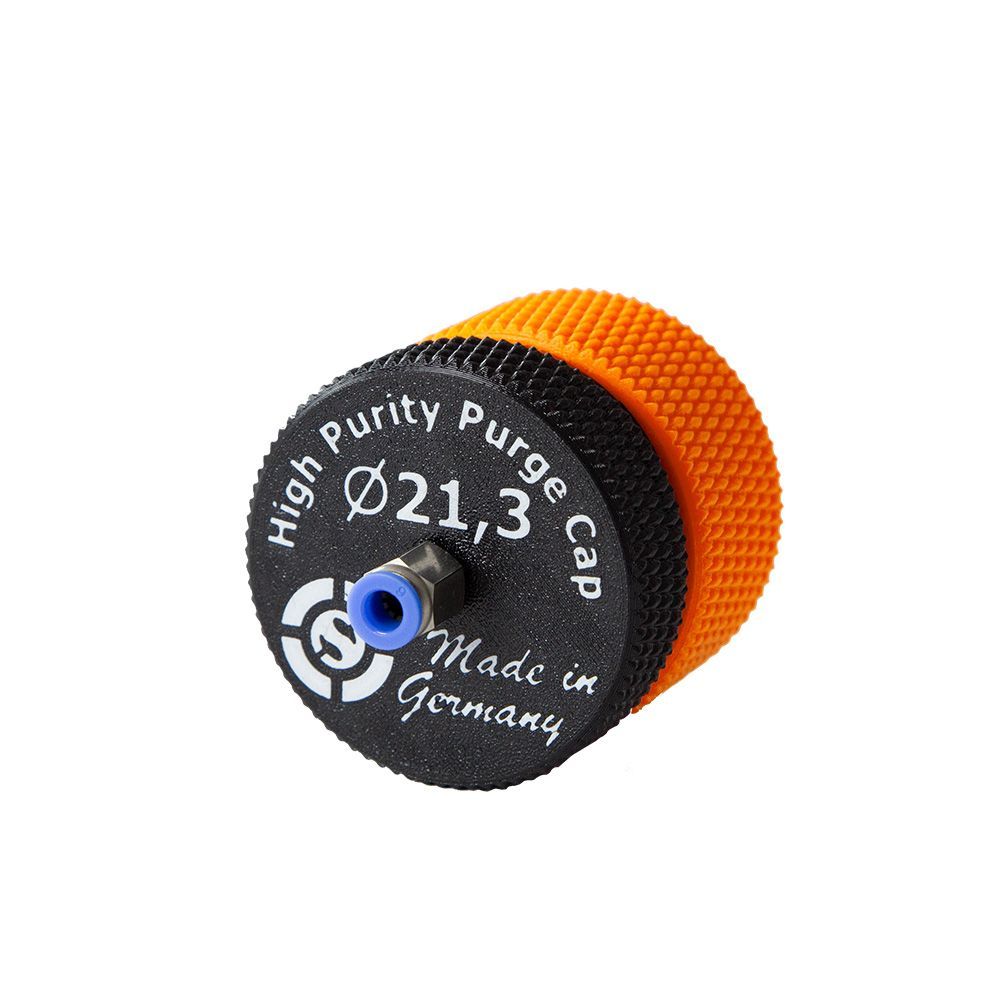

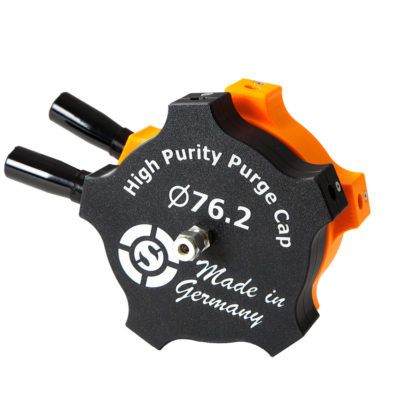

High purity gas caps (external)

  • purge bung

    Slide title

    Write your caption here
    Button
  • purge bung

    Slide title

    Write your caption here
    Button

field of use:

  • Semiconductor (pure gas supply in the semiconductor industry)
  • Aerospace
  • pharmacy


material:

  • Body and union nut PETG
  • TPU air cushion seal
